metal die parts example

Metal die parts

We show our capability of making punch die, metal stamping,
bending die with different shapes and different metal parts project examples.

Intertech is a professional metal die designers and builders in Taiwan.
We design and build all tooling in-house.

 And we accept also the order for metal die parts production.

The material we manage mostly for bronze, copper, iron, stainless steel and steel alloy.
 From stainless steel fabrication projects, punch die set to progressive die stamping and
CNC machining, we can adopt our service to meet your specific requirement.

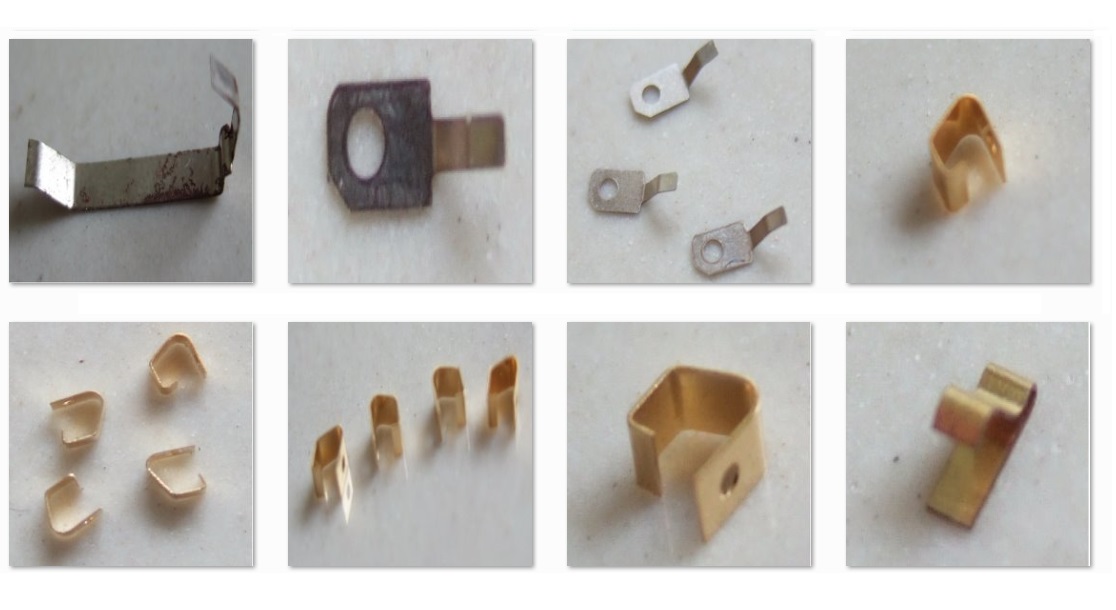

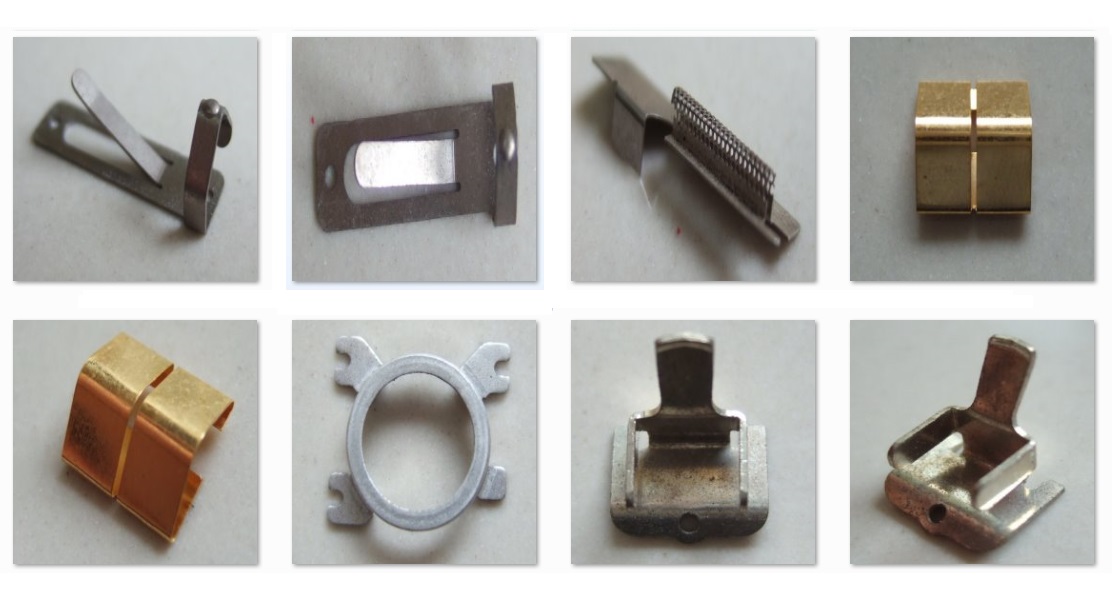

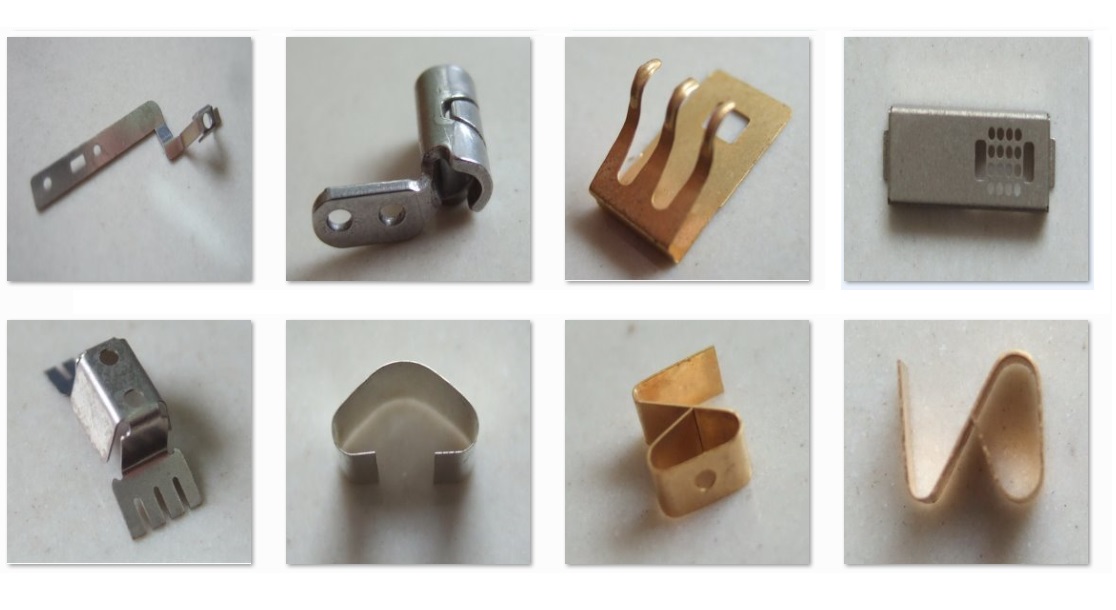

In this page, you can see there are a lot of different material and
shape of the metal parts pieces examples done by us.
Welcome to send us your project !

http://www.taiwanmoldmaker.com/prduct/metal-die-parts-example

http://www.taiwanmoldmaker.com/

https://intertech.en.taiwantrade.com/

http://www.intertech.net.tw/

http://plasticmoldmaker.blogspot.tw/

-Facebook

https://www.facebook.com/Plastic-mold-1081123818582123/

-Linkedin

https://www.linkedin.com/in/taiwan-mold-maker-injection-molding-factory-743a6570/

-Email

intertech@seed-net.tw

-Tel: +886 2 28334646     -Fax: +886 2 28334700

Contact: Deb Hsien

Skype: debbyhsien

WhatsAPP: +886932866329

Customized Plastic Injection Molding Tools

Customized Plastic Injection Molding Tools

Intertech is based 100% in Taiwan with more than 30 years experience.  We help customer to make customized plastic injection molds, particularly in the material of high quality steel purely imports from German and Japan. We commonly use mold steel such as P20 (1.2311), H13 (1.2344) and Starvax 420 (stainless steel), and with simple maintenance, all these tools can run min. 200000 ~ 1000000 shots under ideal operational condition.

Tools starts with 30-50% down payment, with the rest paid only after you are satisfied with the testing sample.  We build customized molding tools for small businesses or large manufacturers.

We can make the mold and molding product project for the plastics, silicone, liquid

Silicone rubber and metal materials.  We offer the best service with the best price.

Price varies …up to the type of molding tools.  Typically a small molding tool costs from $1000 - $5000, and larger ones from $500 to $30000.  Please contact us for details.

For Mold Inquiry, Customer Must prepare:

1. Product drawing with 2D(.dwg)and 3D (.igs, .stp…etc)?

2. Advise product material (ex. Plastic ,rubber, silicone rubber or metal…etc )?

3. Molding machine tonnage size and platen size?

4. The cavity number of the mold that you want us to quote?

5. Mold steel grade that you want us to quote?

6. Hot runner or cold runner mold required?

7. Mold gating inlet preferred?

8. Mold ejection way preferred?

9. Other related information required …(ex. Polishing , texture, engraving …etc)

For Molding Products Inquiry , customer must prepare:

1. Products material required? (ex. Plastics, rubber , silicone , metal…etc)

2. Products quality required in total?

3. Delivery time required?

4. Post machining or not information? (ex. Chromed plate.., painting …etc)

5. Assembly or not information?

6. Packing or not information?

http://www.taiwanmoldmaker.com/

https://intertech.en.taiwantrade.com/

http://www.intertech.net.tw/

http://plasticmoldmaker.blogspot.tw/

-Facebook

https://www.facebook.com/Plastic-mold-1081123818582123/

-Linkedin

https://www.linkedin.com/in/taiwan-mold-maker-injection-molding-factory-743a6570/

-Email

intertech@seed-net.tw

-Tel: +886 2 28334646     -Fax: +886 2 28334700

Contact: Deb Hsien

Skype: debbyhsien

WhatsAPP: +886932866329

Plastics Shrinkage Rate & Mold Shrinkage Rate

 Plastics Shrinkage Rate & Mold Shrinkage Rate

It is very important for each product design to know the plastics shrinkage rate. So that when he designs his parts design, he can present the right scale size of the drawing to mold  manufacturing factory like Intertech.

Meanwhile, the mold shrinkaged rate provides good information for production injection molding factory for calculating the final finished product size to be stablized in final shape.

http://www.taiwanmoldmaker.com/
http://www.intertech.net.tw/
https://intertech.en.taiwantrade.com/

Plastics Shrinkage Rate
General Plastics	Shrinkage Rate (%)
	Raw Material	Add. 30% GF
LDPE	2.0	0.5
HDPE	2.0	0.4
PP	1.8	0.4
PS	0.6	0.1
PVC	0.4	0.1
PMMA	0.5	0.1
ABS	0.6	0.1
Engineering Plastics	Shrinkage Rate (%)
	Raw Material	Add. 30% GF
NY6	1.5	0.4
NY66	1.5	0.4
PBT	2.0	0.4
POM	2.5	0.5
PC	0.6	0.1
PPO	0.6	0.1

Mold Shrinkage Rate
Plastics	Glass Fiber Adding	Mold Shrinkage Rate
	[%]	[%]
PS		0.3-0.6
HI-PS		0.5-0.6
SAN		0.5-0.7
ABS		0.4-0.7
ASA		0.4-0.6
LDPE		1.5-5.0
HDPE		1.5-3.0
PP		1.0-2.5
PP+GF	30	0.5-1.2
PVC-soft		>0.5
PVC-rigid		0.5
PVDF		3.0-6.0
PMMA		0.1-0.8
POM		1.9-2.3
PPO		0.5-0.7
PPO+GF	30	<0.7
CA		0.5
PC		0.8
PC+GF	10~30	0.15-0.55
PBT		1.5-2.5
PBT+GF	30-50	0.3-1.2
PA6		0.5-2.2
PA6+GF	30~50	0.3-1
PA66		0.5-2.2
PA66+GF	30~50	0.5-1.5
PA11		0.5-1.5
PA12		0.5-1.5
PPS	40	0.2

Injection Molding - Material,Machine & Mold Temperature Information

POM, HIPS, HPVC, PMMA, SAN, ABS, PP, PU, HDPE, PBT, PBT Glass Fiber, PA6, ABS+PC, PBT+GF, PA6+GF, PC & PEEK are the plastic materials that we commonly use for making mold and making plastic injection molding production job for customer.

Injection Molding - Material,Machine & Mold Temperature information


POM, HIPS, HPVC, PMMA, SAN, ABS, PP, PU, HDPE, PBT, PBT Glass Fiber, PA6, ABS+PC, PBT+GF, PA6+GF, PC & PEEK are the plastic materials that we commonly use for making mold and making plastic injection molding production job for customer.


In this chart, you may easily know all the machine temperature, mold temperature, raw material baking hours and raw material dry temperature information suggested for each differnt plastics moldingconidition.


Intertech has good experience in running all these material's mold making and molding production job for long time.  Welcome to contact us for your need !

http://www.taiwanmoldmaker.com/product/injection-molding-temperature-information http://www.taiwanmoldmaker.com/
http://www.intertech.net.tw/
https://intertech.en.taiwantrade.com/

Plastics we commonly use	Injection Machine Screw temperature Suggested.	Mold Temperature Suggested.	Raw Materail baking hour	Material dry temperature
POM	160-280	10-80	2~3	60-70
HIPS	170-250	10-80	2~4	60-80
HPVC	180-210	30-50	2~3	40-70
PMMA	180-260	50-80	3~5	70-80
SAN	180-270	40-80	2~4	70-80
ABS	180-250	50-90	2~3	80-90
PP	190-270	30-80	2~3	40-80
PU	195-230	20-40	2~3	80-90
HDPE	200-260	30-70
PBT	220-260	50-100	3~4	120-140
PBT Glass Fiber	230-270	80-110	3~4	120-140
PA6	230-260	60-90	4~6	75-90
ABS+PC	240-290	90-110	2~4	100-120
PBT+GF	250-270	60-100	3~4	120-140
PA66	260-290	60-100	3~5	75-90
PET	260-290	120-140	2~4	120-160
PP+GF	260-280	50-80	2~3	40-90
PA6+GF	270-300	70-120	4~6	75-80
PC	280-320	80-1002~4	110-120
PEEK	340-390	120-150	2~4	140-150

Liquid silicone rubber is widely and tremendous expanded used in the manufactured of consumer products, medical devices and instrial goods...! Future market insights estimates the global market for liquid silicne rubber by 2026 will touch aUSD7.9 billion. Intertech endevors for liquid silicone rubber mold making and molding business for more than 30 years, too. Glad to see this future market trend, and welcome for new customers who needs our service... !

Liquid silicone rubber is widely and tremendous expanded used in the manufactured of consumer products, medical devices and instrial goods...!  Future market insights estimates the global market for liquid silicne rubber by 2026 will touch aUSD7.9 billion.  Intertech endevors for liquid silicone rubber mold making and molding business for more than 30 years, too.  Glad to see this future market trend, and welcome for new customers who needs our service... !

http://www.taiwanmoldmaker.com/
http://www.intertech.net.tw/

As molding processes gain grounds in the manufacturing sector, injection materials such as liquid silicone rubber are witnessing a sharp increase in terms of demand. Versatile characteristics and unique properties of liquid silicone rubber is driving its value in the elastomer industry, wherein a wide spectrum of consumer products, medical devices and industrial goods are being manufactured by injecting liquid silicone rubber into mold cavities. Future Market Insights estimates that by the end of 2026, the global market for liquid silicone rubber will touch a valuation of US$ 7.9 billion.

The study foresees a moderate growth for the expansion of global liquid silicone rubber market during the period, 2017-2026. It has been estimated that the global liquid silicone rubber market will register a value CAGR of 4.5% over the forecast period. High carbon footprint of producing liquid silicone rubber at large scale, limitations to the reuse and recyclability of such elastomers and disposability challenges are set to deter the use of liquid silicone rubbers in the near future.

Molding capabilities of liquid silicone rubbers will drive their use across several industrial applications. It has been observed that industrial grade liquid silicone rubber will showcase robust growth in demand in the coming years. Through 2026, nearly half of the global liquid silicone rubber market value will be accounted by sales of industrial grade elastomers. The report also foresees that liquid injection molding technology will be a sought-after in the global liquid silicone rubber market. In 2017, more than US$ 3.2 billion worth of liquid silicone rubbers will be used by liquid injection molding systems across the globe.

The study has identified key industries that will drive the end-use of liquid silicone rubber in the near future. Consumer goods industry will reflect highest profitability in the end-use of liquid silicone rubber for manufacturing fast-selling products such as buttons and rubber gaskets. By the end of 2026, US$ 1.76 billion worth of liquid silicone rubber will be used in the production of consumer goods worldwide. Furthermore, healthcare landscape will also exhibit fast-growing end-use of liquid silicone rubber over the forecast period. Liquid silicone rubber manufacturers will find lucrative profit margins will selling these elastomers in the production of expensive medical devices such as lung catheters. The report also observes the automotive industry as a lucrative end-user of liquid silicone rubbers. Over the forecast period, automotive end-use of liquid silicone rubber will reflect highest value CAGR of 5.4% in the global market.

China National Chemical Corporation, Shin-Etsu Chemical Co., Ltd., KCC Corporation, Toshiba Medical Systems Corporation, and Zhejiang Xinan Chemical Industrial Group Co., Ltd. are among the prominent manufacturers of liquid silicon rubber based in Japan, China, Korea and other parts of the Asia-Pacific region. The report estimates that in 2018 and beyond, the Asia-Pacific excluding Japan (APEJ) region will represent largest marketplace for liquid silicone rubber, reflecting a weighted 35% share on global market value. Other key players in the global liquid silicone rubber market, namely Dow Corning Corporation, Momentive Performance Materials, Inc., Evonik Industries AG, Bluestar Silicones International, SiVance, LLC, NuSil Technology LLC, Simtec Silicone Parts, LLC, Wacker Chemie AG, Stockwell Elastomerics Inc., and Xinapse Systems Ltd. are also expected to bolster their presence across the APEJ region in the foreseeable future.

sourced from : https://exclusivereportage.com/502143/liquid-silicone-rubber-market-to-represent-a-significant-expansion-at-4-5-cagr-during-2017-2026/

Contract Manufacturing

Intertech is your reliable outsourcing manufacturing partner in Tai wan.  We are the leading contract manufacturing source for industry components, electronics, and medical device.
http://www.taiwanmoldmaker.com/product/contract-manufacturing

From the beginning of each project, we check customer’s parts design to see whether it is possible or not to be carried out for making the actual mold and the actual molding production job.  If this is possible, we discuss together with customer by presenting our DFM, Design For Manufacturing, report for getting customer’s approval for making the final mold and molding product job.

The contract manufacturing project material we manage include plastics, silicone rubber, liquid silicone rubber and metal ..etc.

We have plastic injection molding machine ranged from 50-3000T in our team partners for the plastic projects.  We have hot compression machine in various sizes (70-300T) in our team partners factory, plus our in house precision tooling building capability for running different kind of silicone and liquid silicone projects.   We have punch press (25-200T) in various sizes in our team partners factory, plus our in house precision die design and building capability for running different kind of metal projects.




















Also, with a variety of contract manufacturing services such as welding, semi-assembly, pad printing, spray coating, packaging and shipping to customer’s appointed worldwide address, Intertech is a trusted partners for your quick prototypes, mold making and molding production and post machining line need !  We can accept any order for low, medium and high volume production contract manufacturing job !

sourced from :http://www.taiwanmoldmaker.com/product/contract-manufacturing
